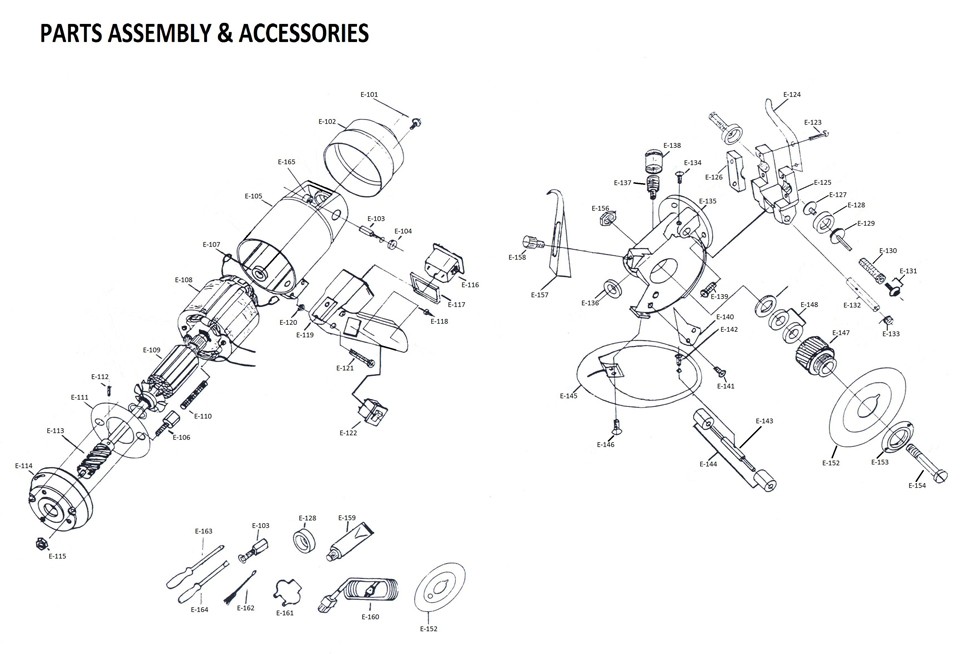

RedArrow Round Knife Cloth Cutter Electric-YH-939 (Electric)

E-101

Screw for cover

E-132

Crinder for shaft

E-102

Cover

E-133

Spring

E-103

Carbon brush with spring

E-134

Screw for shaft

E-104

Cap for carbon brush

E-135

Gear box

E-105

Motor cover

E-136

Bushing

E-106

Socket screw

E-137

Grease cup

E-107

Ball bearing

E-138

Cap for grease cup

E-108

Stator

E-139

Screw

E-109

Rotor

E-140

Guide plate

E-110

Stud bolt

E-141

Screw for guide plater

E-111

Air guide

E-142

Screw for roller shaft

E-112

Spring Pin

E-143

Roller shaft

E-113

Worm gear

E-144

Rollers

E-114

Front cover

E-145

Base plate

E-115

Nut

E-146

Set screw for gear box

E-116

Receptacle

E-147

Worm gear

E-117

Receptacle

E-148

Ball bearing

E-118

Screw

E-149

Ball Bearing Lock Nut

E-119

Operating handle

E-152

Round Blade 3 1/2"

E-120

Nut for handle

E-153

Blade lock nut

E-121

Screw for handle

E-154

Screw for gear screw

E-122

Switch

E-156

Nut for worm gear screw

E-123

Screw

E-157

Finger guard

E-124

Presser lever

E-158

Screw for finger guard

E-125

Sharpening stone bracket (A)

E-159

Grease

E-126

Sharpening stone bracket (B)

E-160

Carbon Brush Stand

E-127

Screw for stone

E-161

Wrench

E-128

Sharpening stone

E-162

Cleaning Brush

E-129

Sharpening stone fixed base

E-163

Screwdriver (+)

E-130

Pipe screw

E-164

Screwdriver (-)

E-131

Screw

E-165

Carbon Brush
