Mini Cloth Cutter
Clean, Qualified, Durable, Avoid-rust transaction.
As if a jumped jarguar. The very mini electric cloth cutter !
Ideal for Tailoring, Drapery Stores, Carpet Makers and Leather Materials, and etc...
• Geniusly Design to fit exterior Dynamic And Save Enormous Labor Work.
• Light in weight, when operating produces less noise than ordinary cutter.
• Adjusting switch for easy cutting.
• High Torque Motor; Longer lasting life.
 |

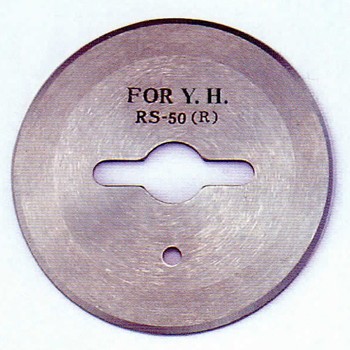

D-0 / Round Blade 2" Suitable for thin material. |
 |

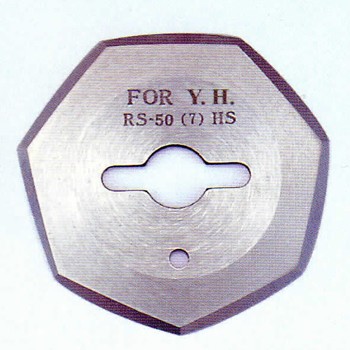

D-531 / Seven Blade 2" Suitable for thick material (with Scissor Action Strokes). *with "Push Button" sharpener. |

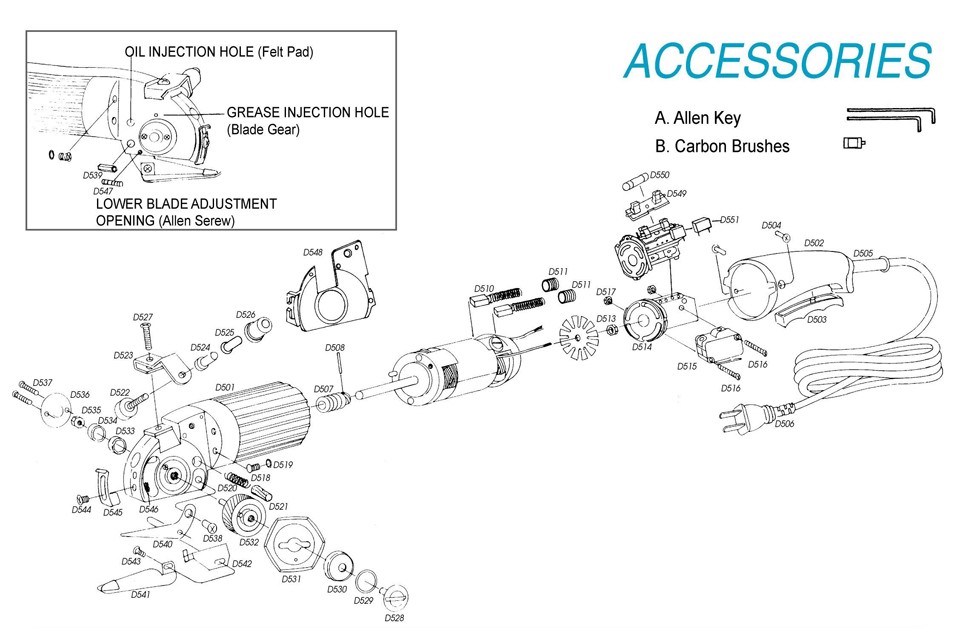

Part-List
|
D-0 |
Round Knife 2” |
D527 |
Set screw for grinder bracket 4x10 |
|
D501 |
Main housing |
D528 |
Blade lock screw with tension |
|
D502 |
Rear housing |
D529 |
Blade lock screw with tension |
|
D503 |
Switch bar |
D530 |
Blade lock screw with tension |
|
D504 |
Set screw for rear housing |
D531 |
Hexagonal blade (standard) |
|
D505 |
Cord sleeve |
D532 |
Worm gear-plastic |
|
D506 |
Cord complete with plug |
D533 |
Ball bearing |
|
D507 |
Worm gear (motor side)--steel |
D534 |
Trust collar |
|
D508 |
Roll pin for worm gear |
D535 |
Hexagonal nut |
|
D509 |
Motor assembly (100V/220V) |
D536 |
Cover plate |
|
D510 |
Carbon brush with spring |
D537 |
Set screw 3x10 |
|
D511. |
Screw cap for carbon brush |
D538 |
Set screw for counter blade 4x10 |
|
D512 |
Ventilator for motor |
D539 |
Set screw nut for counter bladet |
|
D513 |
4mm screw nut for motor ventilator |
D540 |
Counter blade |
|
D514 |
Switch |
D541 |
Sliding base plate |
|
D515 |
Micro-adjust switch |
D542 |
Dust proof metal shim |
|
D516 |
Set screw for micro switch 3x15 |
D543 |
Set screw for sliding base plate 3x5 |
|
D517 |
Set screw nut for micro switch 3x5 |
D544 |
Set screw for finger guard 4x6 |
|
D518 |
Set screw for main housing |
D545 |
Finger guard |
|
D519 |
Washer for main housing |
D546 |
Set screw nut for finger guard |
|
D520 |
Oil felt spring |
D547 |
Adjusting screw for counter blade 3x10 |
|
D521 |
Oil felt |
D548 |
Blade safety lid |
|
D522 |
Sharpening stone |
D549 |
Fuse set |
|
D523 |
Sharpening stone bracket |
D550 |
Fuse |
|
D524 |
Set screw for stone bracket |
D551 |
Current stabilizer set |
|
D525 |
Push knob for stone |
|
|
|
D526 |
Screwed cap for stone |
|
|
